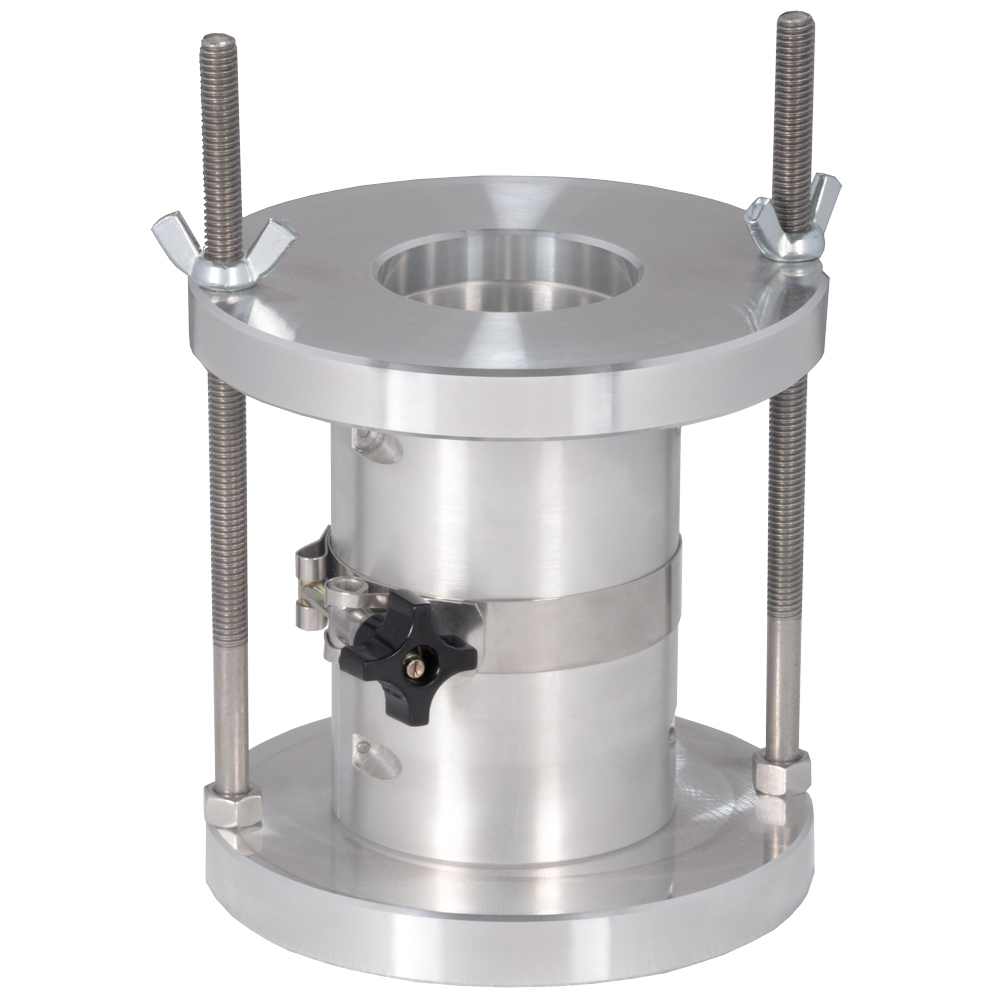

2in Two-Part Compaction Mold Assembly

Model: HMA-988

Price: $520.00

Meets Standard(s)

Qty:

Description
Specifications
Questions?

The 2in (50.8mm) Two-Part Compaction Mold Assembly simplifies the process of remolding cohesive samples for triaxial and permeability testing with its 2:1 height/diameter ratio. Molds fit securely within the base and provide a solid surface for compaction. The included collar completes the assembly and is secured using threaded rods and wing nuts. Ordering an additional 2in Two-Part Compaction Mold offers increased efficiency in sample preparation for testing. The base plate dimensions are 7x0.75in (178x19.05mm) Dia.xH.

Features:

Threaded rods and wing nuts for quick assembly
Band clamp allows for easy mold closure

Included Items:

2in Two-Part Compaction Mold Assembly

Accessories:

2in Two-Part Compaction Mold used to remold cohesive soil samples for testing

Specimen Size	2.0in (50.8mm)
Dimensions	Mold Dimensions: 3.00 x 4.00in (76.2 x 101.6mm) Dia. x H
Product Dimensions	7 x 5.5in (178 x 139.7mm) Dia. x H
Estimated Shipping Weight	7.0lb (3.18kg)
