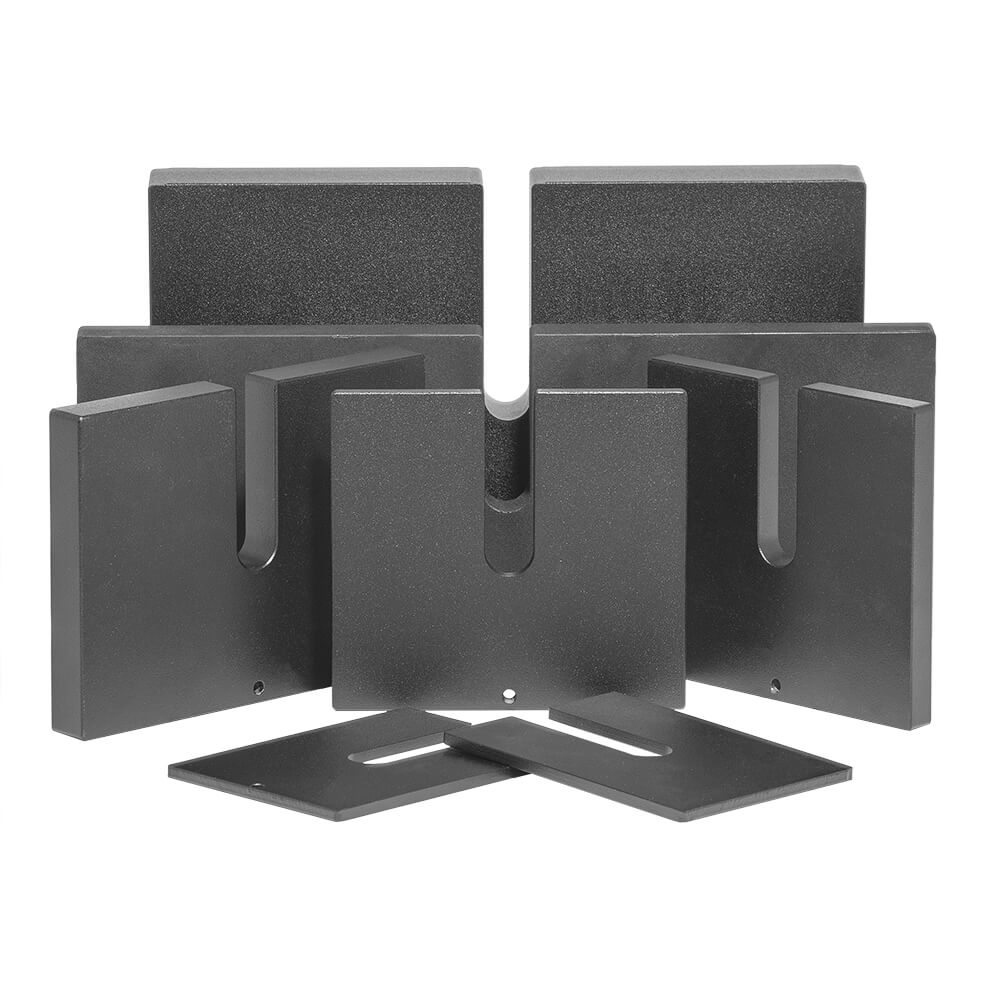

54.5lb Weight Set

The 54.5lb Weight Set offers a sequence of different weights in pound units with a total mass of 54.5lb for Karol-Warner Dead-Weight Consolidation Test Apparatus or Direct Shear Machine. When used with a loading beam ratio of 10:1, a total load of 545lbf can be applied to the specimen. For a 2.50in (63.5mm) diameter specimen, the maximum pressure would be 8tsf.

Features:

• Total mass of 54.5lb
• Total load of 545lbf with 10:1 beam ratio

Included Items:

• 2 (each) 0.852lb weights
• 1 (each) 1.704lb weight
• 1 (each) 3.409lb weight
• 1 (each) 6.818lb weight
• 1 (each) 13.635lb weight
• 1 (each) 27.27lb weight
