Double Tube Manometer Panels

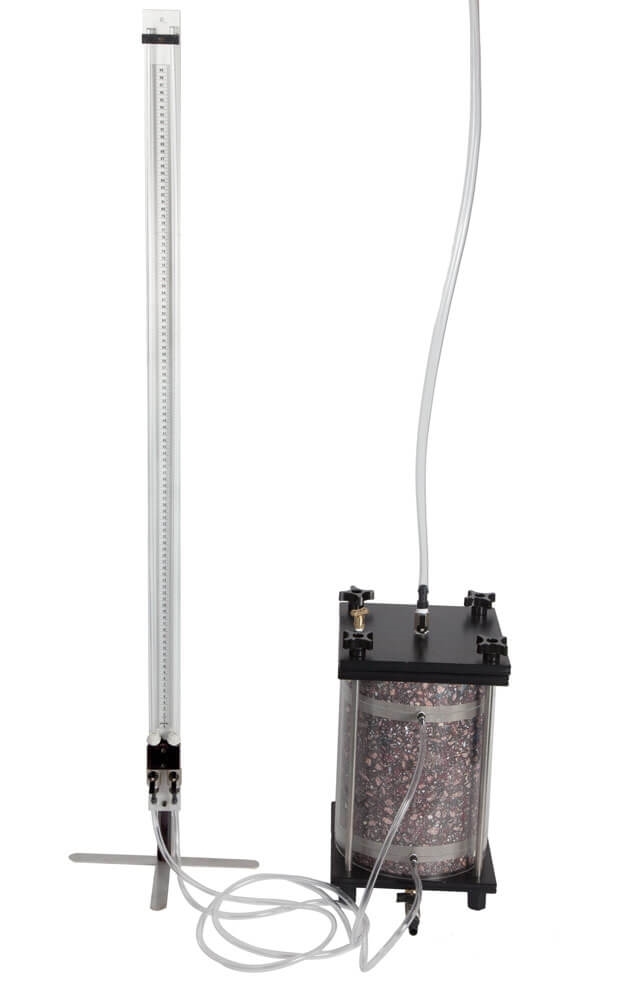

Double Tube Manometer Panels have double tubes and are for use with ASTM / AASHTO Constant Head Permeameters. Each panel has two acrylic tubes with valves mounted on an aluminum rail and a five-foot length of vinyl tubing on each tube. A 100cm scale with graduations in both mm and cm measurements is affixed to the rail between the two tubes for monitoring flow volumes. Each tube has its own valve, making it possible to run two independent permeability tests. Either the wall-mounted or free-standing unit is required for use with the ASTM / AASHTO Constant Head Permeameters.

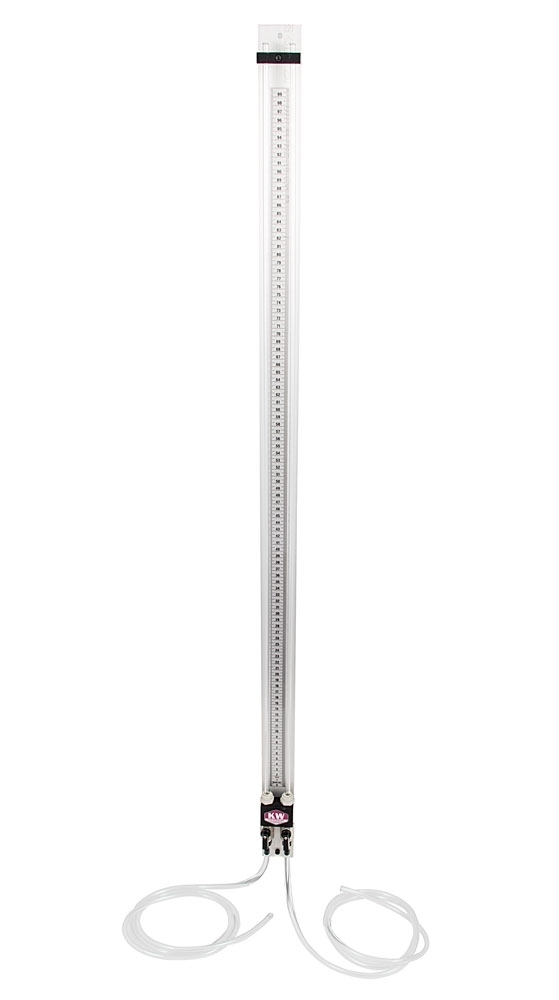

3860 Double Tube Manometer, Wall-Mounted easily mounts on a wall for permanent placement.

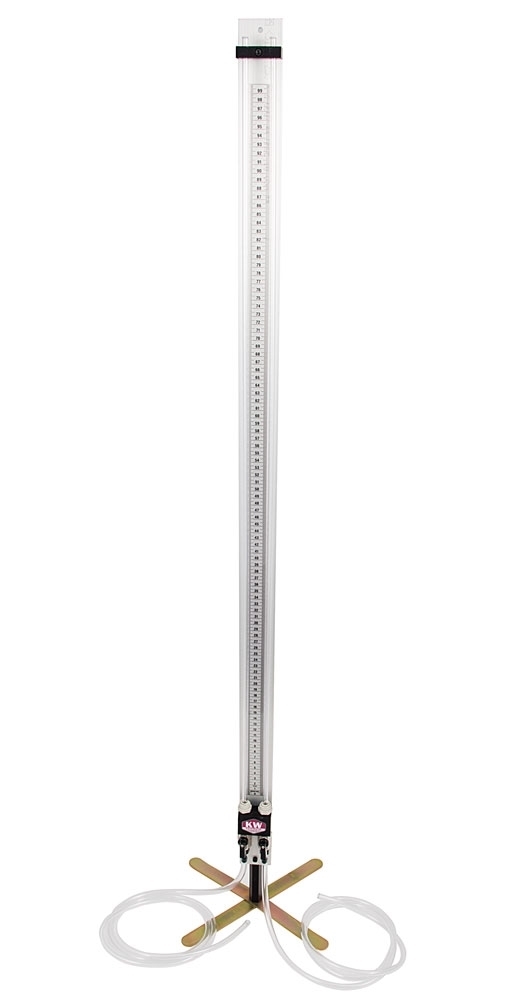

3861 Double Tube Manometer w/ Stand has a sturdy base and can be easily moved.

Features:

• 100cm graduated scale
• Tubes have separate valves allowing for two tests

Included Items:

• Double Tube Manometer, Wall-Mounted or
  Double Tube Manometer w/ Stand
