Load Frame, 0.0001 - 0.3in / min, 10,000lbf

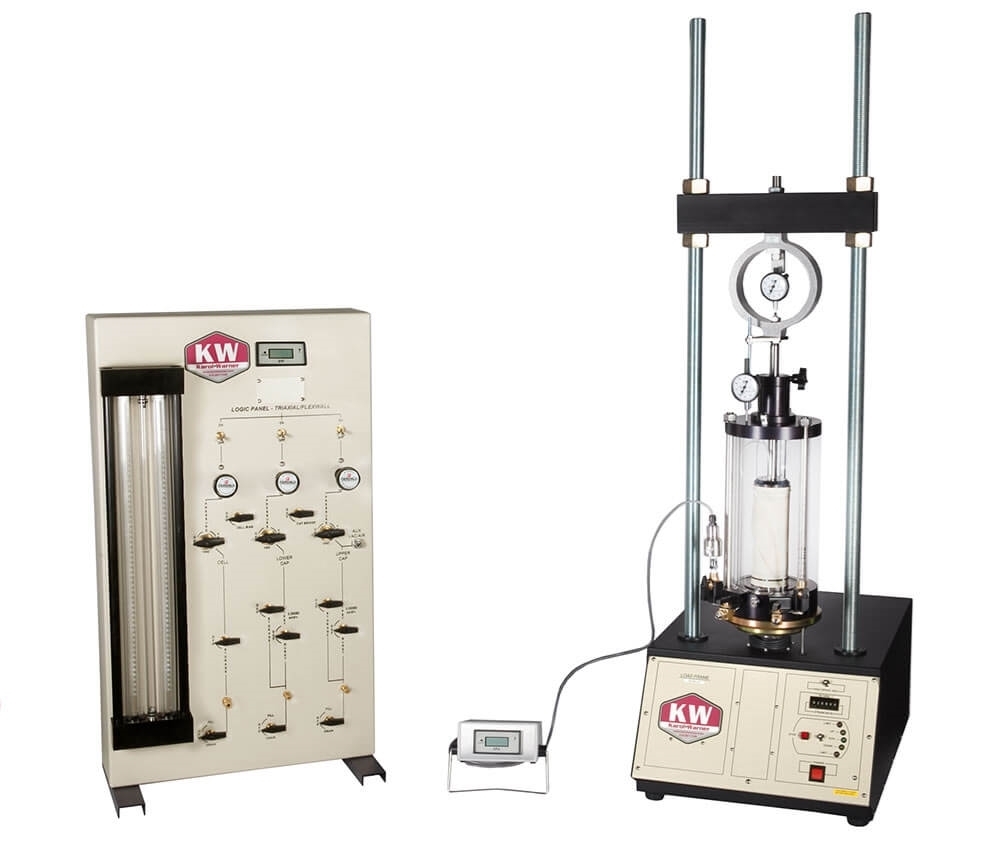

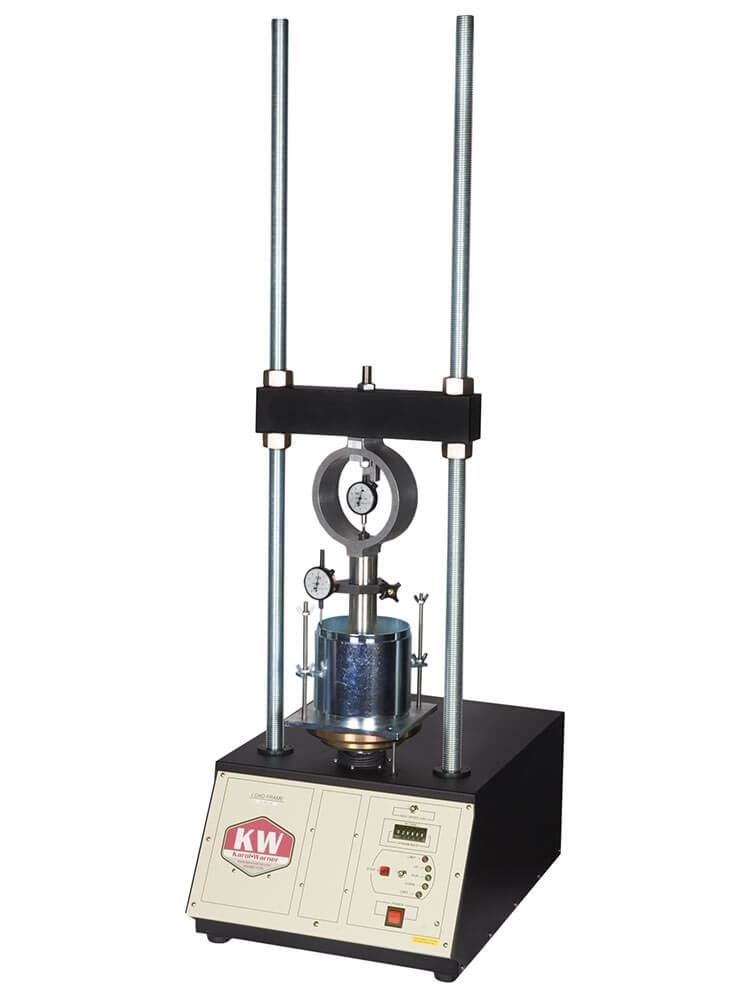

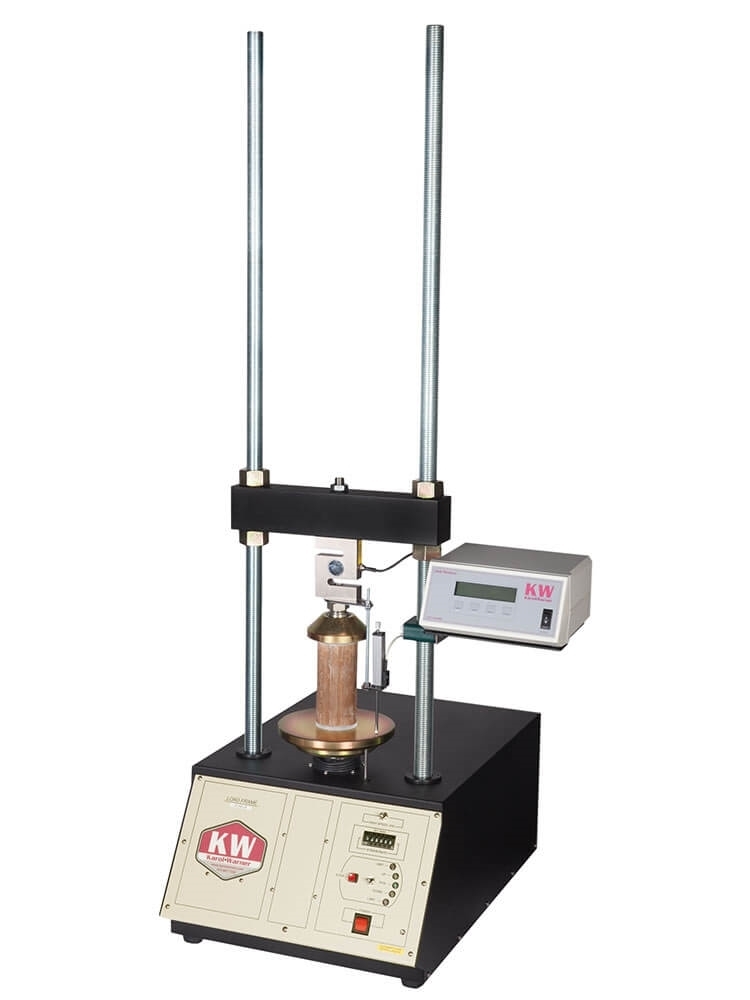

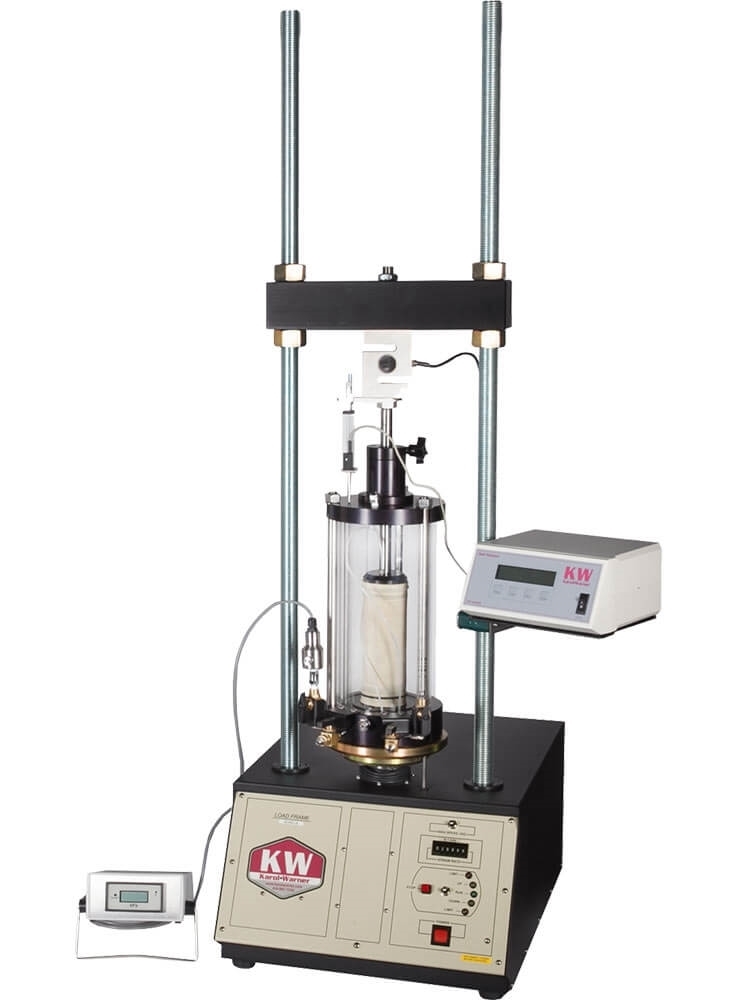

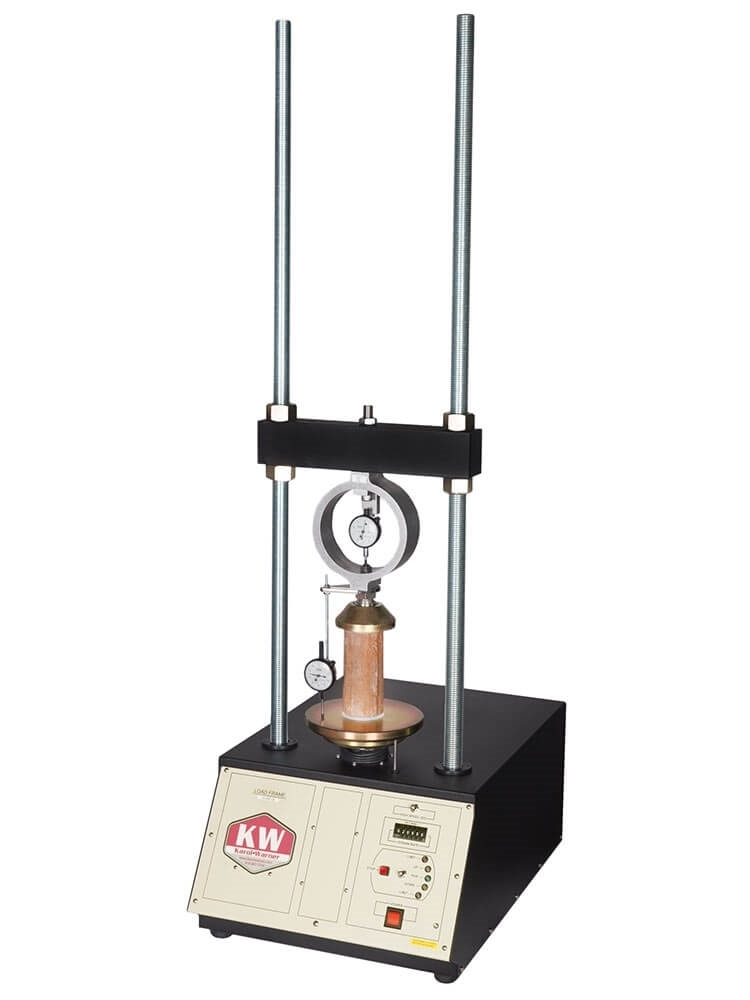

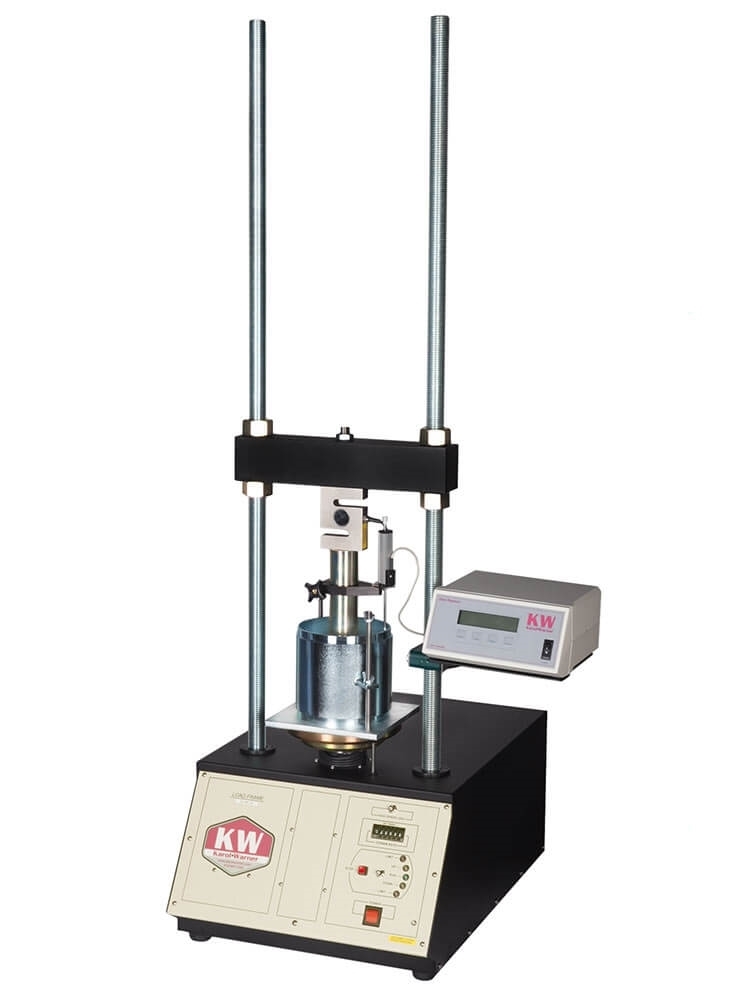

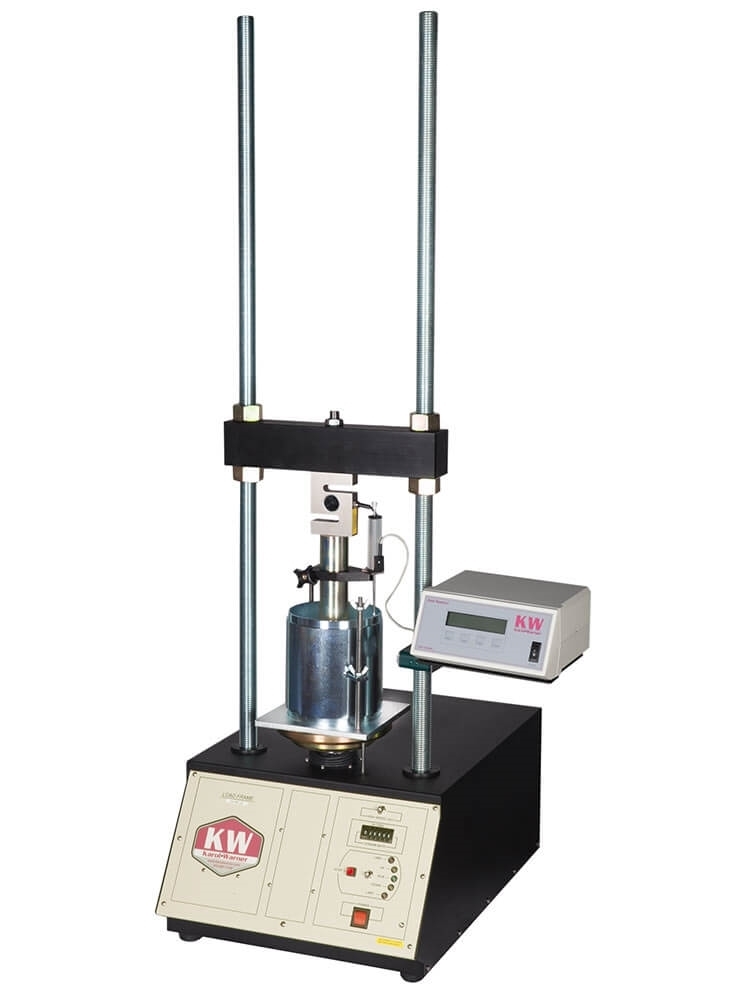

The Load Frame is an economical Load Frame that can perform a variety of soil tests. Its 10,000lbf (44.5kN) capacity and wide strain rate of 0.0001 – 0.3in/min (0.00254 – 7.62mm/min) cover California Bearing Ratio (CBR), Unconfined Compressive Strength (UC), Triaxial, and Soil Cement tests when equipped with proper load and displacement components. The reliable DC stepper motor regulates speed to within ±1% and is matched to the unique speed and torque requirements of the Load Frame.

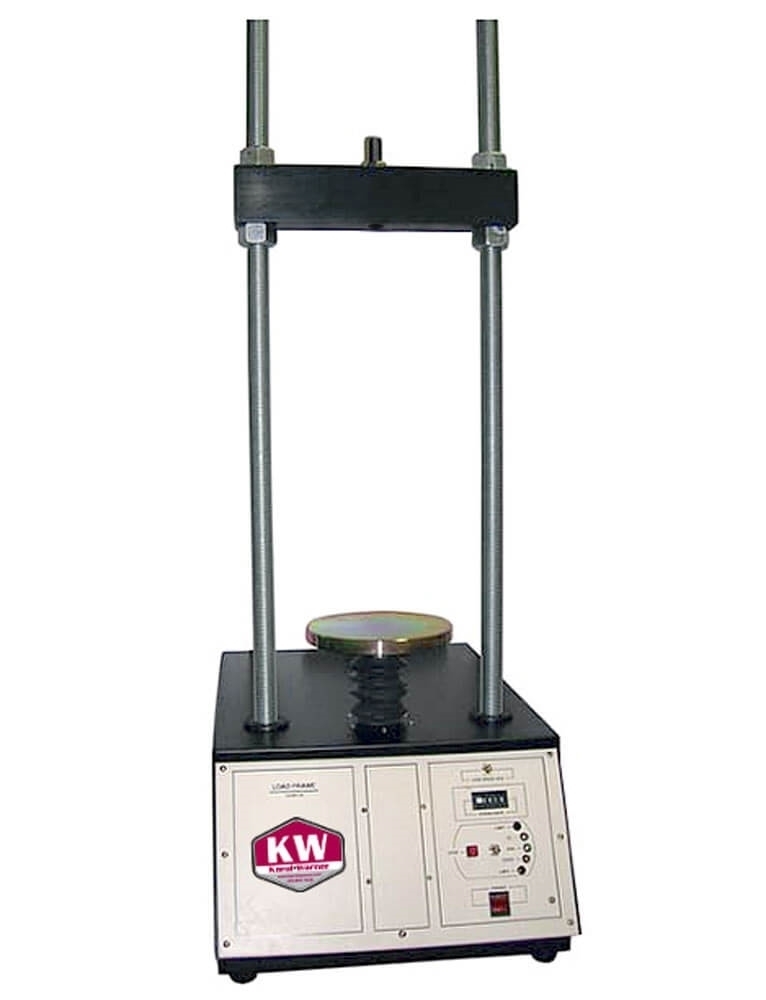

With its sturdy powder-coated steel cabinet and precision loading screw with a protective boot, the Load Frame can handle even the most severe lab environments. Front panel controls allow the operator to adjust the direction and speed of the 8in (203mm) diameter platen, as well as select the strain rate. The vertical 1.25in (32mm) diameter rods allow for a quick change of crossarm height.

To view our complete line of Load Frames, please visit our Load Frames page.

Features:

• The strain rate of 0.0001 – 0.3in/min covers a number of different soil tests
• Load capacity up to 10,000lbf
• DC stepper motor regulates speed to within ±1%
• Corrosion-resistant construction
• Simple to operate and maintain
• Economical and versatile product for laboratory or university needs

Included Items:

• Load Frame, 0.0001 – 0.3in / min, 10,000lbf

Accessories:

• Data Acquisition Software records specimen information and real-time test data for a wide range of soil and asphalt laboratory tests and prepares reports following applicable ASTM and AASHTO requirements
• Load & Displacement Measurement products outfit Load Frames for specific test methods
• Rolling Cart for Load Frames allows easy portability in the lab
• Two Channel Readout with 2in Displacement Transducer & 10,000lbf Load Cell offers a complete kit for measuring and displaying load displacement
• Readout Load Frame Bracket secures a Data Readout to the Load Frame
