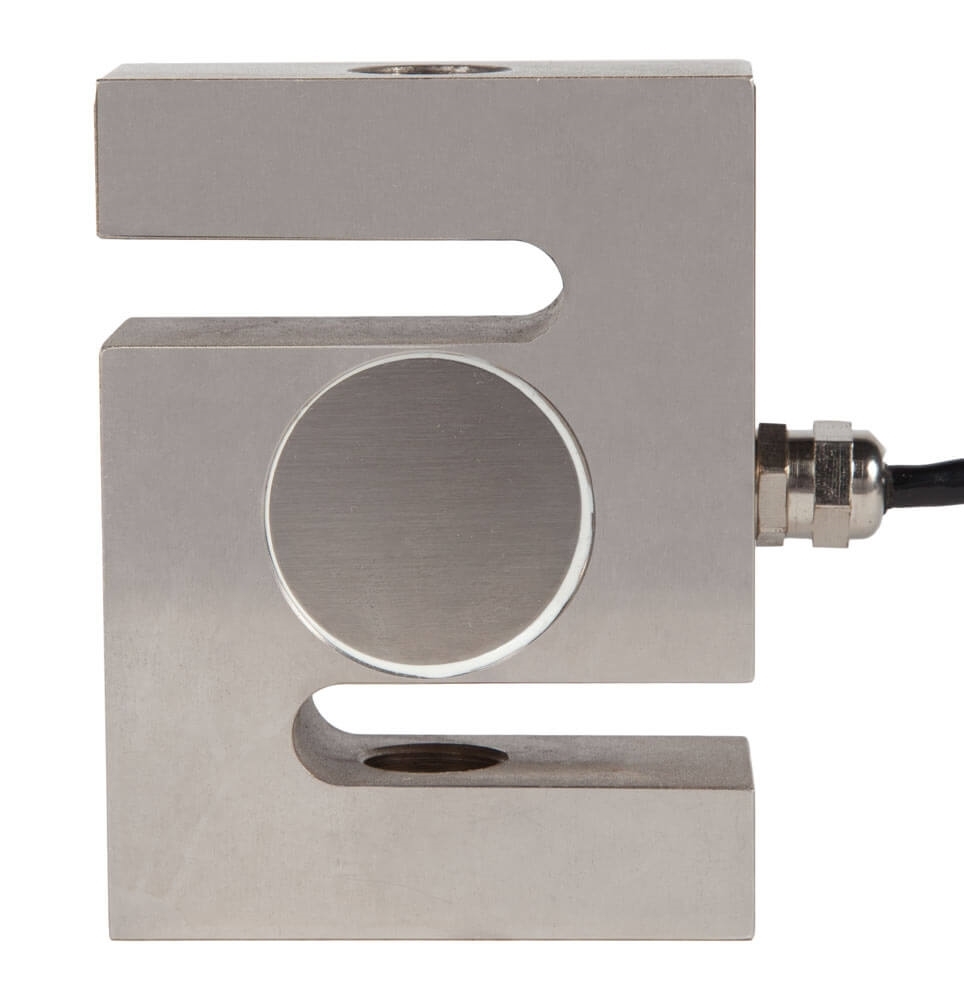

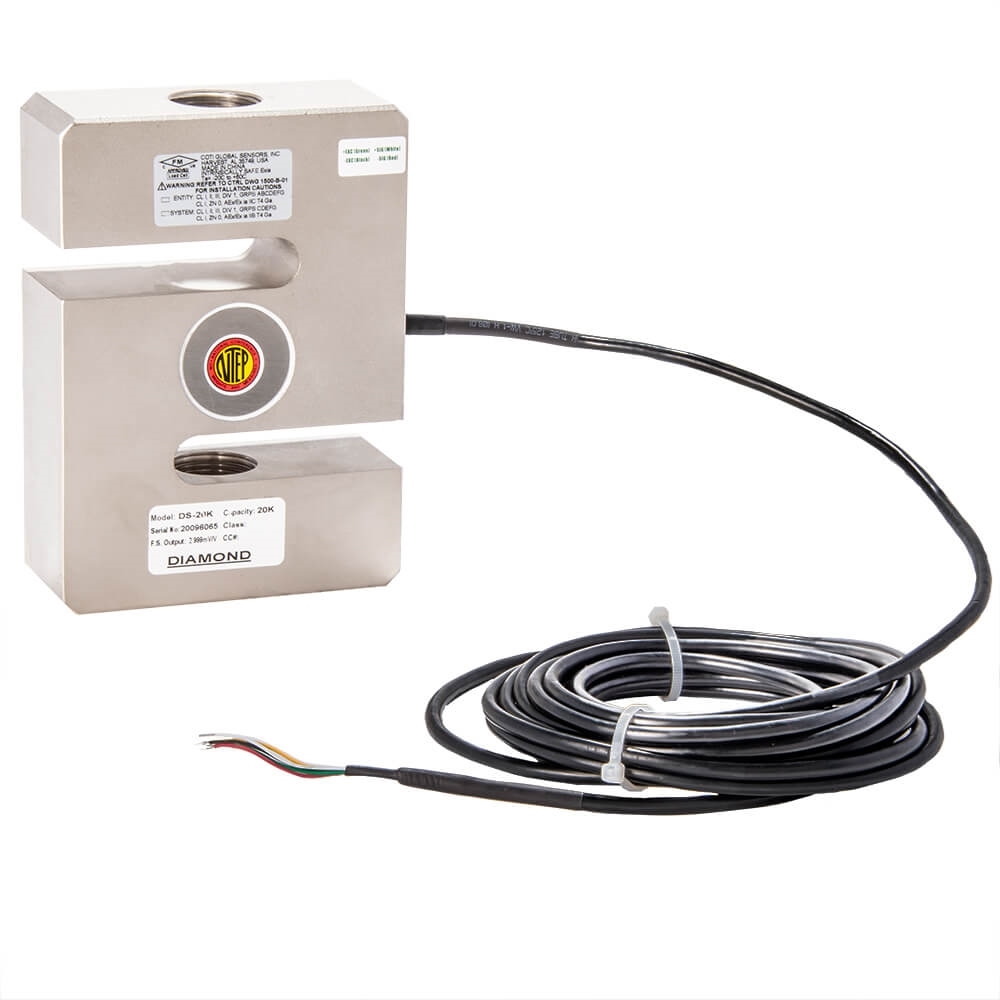

20,000lbf Load Cell

This S-Type Load Cell has a capacity of 20,000lbf (88.9kN) can be used in a variety of soil testing applications to measure compression or tension loads. Top and bottom mounting holes have 1-1/4in x 12tpi threads. Load Cells can be connected to two-channel or four-channel Data Readout to display load values and transfer data to a computer.

Features:

• Load capacity of 20,000lbf (88.9kN)
• Four-wire leads for data output
• Threaded mounting holes
• Machined from rugged stainless steel or plated nickel alloy

Included Items:

• 20,000lbf Load Cell

Accessories:

• Data Acquisition Software records specimen information and real-time test data for a wide range of soil and asphalt laboratory tests and prepares reports following applicable ASTM and AASHTO requirements
• Data Readouts display real-time data
• Loading Button is a point of contact when performing triaxial and asphalt tests and is sold separately
