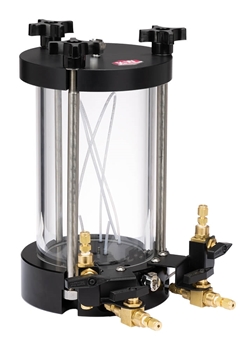

Flexible Wall Permeability Cell, 1.4 to 4.0in dia. Specimens (Brass Valves)

This Flexible Wall Permeability Cell accommodates soil specimens 1.4 to 4in (35.6 to 101.6mm) in diameter. Permeability Cells consist of a 150psi rated heavy-wall acrylic chamber and an anodized aluminum base and top. Cells are fitted with precision zero-volume change ball valves and rugged quality brass fittings.

The Permeability Cell can be purchased individually or with a Test Cell Kit, sold separately. One Kit is required for proper operation of the Cell. Kits include a Top Cap and Bottom Pedestal, two Porous Stones, four Sealing O-Rings, and two 0.012in (0.03mm) Latex Membranes. Sample preparation tools, individual components, and complete kits can be found on the Flexible Wall Permeability Cell Accessories page. The Flexible Wall Permeability Cell Accessories Chart makes it easy to determine the necessary accessories and components for your samples.

Features:

• A clear acrylic chamber allows viewing while testing
• Rugged, corrosion-resistant anodized aluminum base and top
• High-quality zero-volume change brass ball valves and fittings

Included Items:

• Flexible Wall Permeability Cell
• Fluid lines

Accessories:

• Triaxial / Permeability Control Panels regulate fluid and air pressures in the test cells
• Pore Pressure Transducer & Readout monitors pore water pressures and displays data on the included readout
• Specimen Height Indicator tracks the deformation of soil specimens
• Deairing Tanks use a vacuum to remove air from water for use in triaxial and flexible wall permeability testing
• Flexible Wall Permeability Cell Accessories include additional Test Kits and other items used in the preparation and testing of soil specimens, such as Porous Stones, Latex Membranes, and O-Rings
